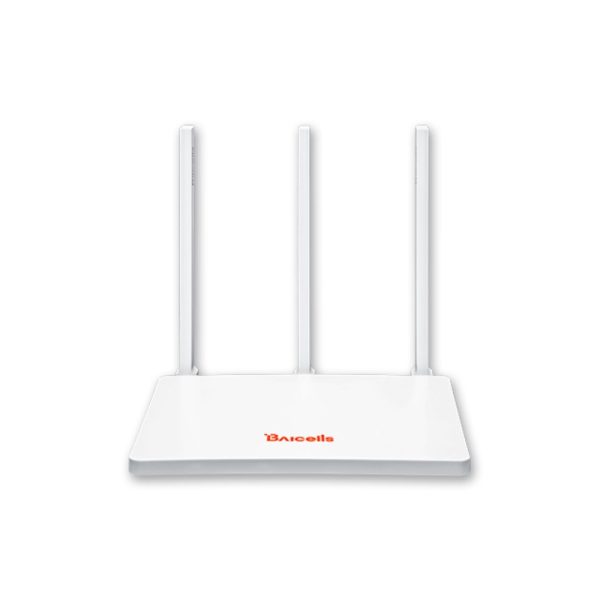

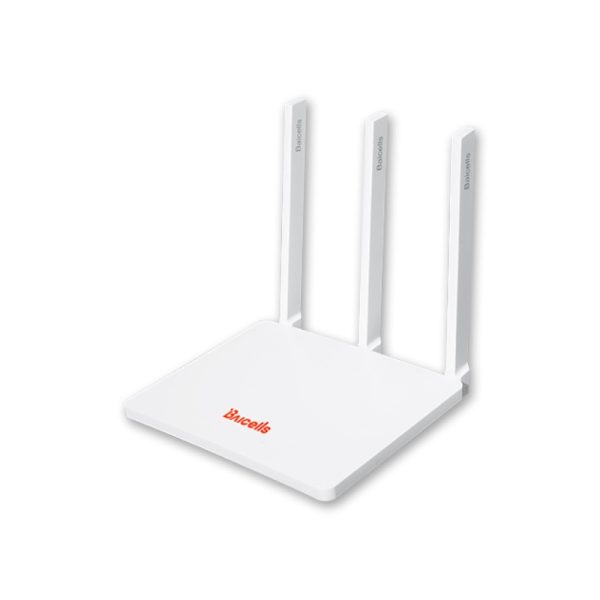

Baicells – NEUTRINO224
BaicellsEasily install this indoor base station in a commercial building to eliminate dead-zones and improve overall capacity and throughput. Built for speed of deployment, this small unit can be mounted on wall, ceiling, or left on a desk.
-
Description
Specifications
| Item | NEUTRINO224 |
| LTE Mode | FDD/TDD |
| Frequency Bands | Please inquire to find out available bands. |
| Channel Bandwidth | FDD Bands 1/2/3/4/7: 5/10/15/20 MHz | FDD Band 5: 5/10 MHz | TDD: 5/10/15/20 MHz |
| MAX Output Power | 21 dBm / antenna |
| MIMO | DL: 2×2 |
| Peak Rate | |
| User Capacity | 48 (FDD) and 32 (TDD) concurrent users per cell |
| Antenna | 5 dBi omni antenna |
| Synchronization | GPS / Network listening / 1588v2 (TDD only) |
| Dimensions | 6.9 x 5.1 x 1.2 Inches 175 x 130 x 30 millimeters |
| Weight | 1.1 lb / 500 g |
| Backhaul |
