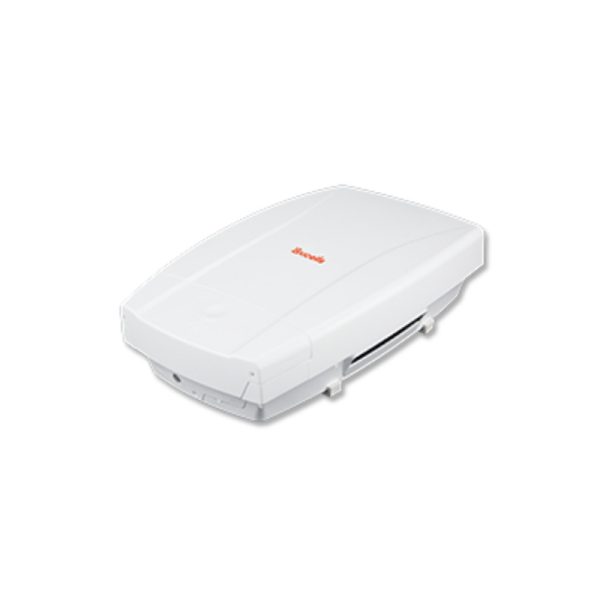

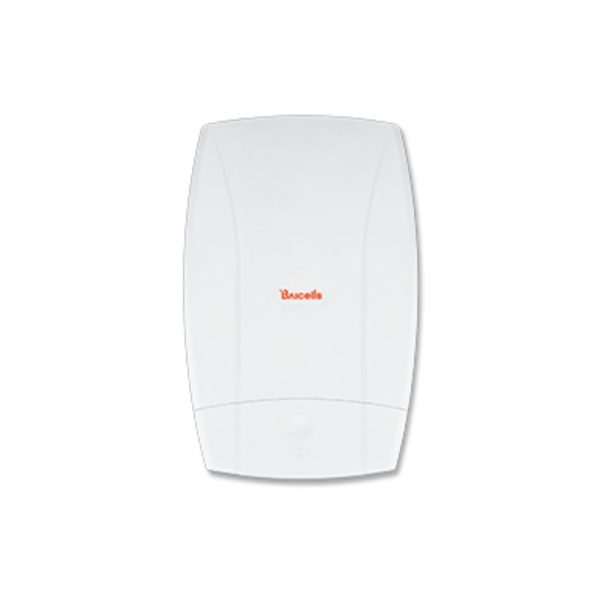

Baicells – ATOM OD CAT6-LX CPE
The Baicells Atom OD06-LX Outdoor Customer Premise Equipment (CPE) provides superior performance and excellent routing capabilities, which will bring broadband data and voice services to end-users.
-
Description
The Baicells Atom OD06-LX Outdoor Customer Premise Equipment (CPE) provides superior performance and excellent routing capabilities, which will bring broadband data and voice services to end-users.
Wi-Fi (WLAN) is not supported on EG8013L_M11. However, it does support Wi-Fi alignment feature which will be turned on only for 10 minutes when the CPE is first starting up and will get turned off automatically after 10 minutes.
This product comes with a standard product warranty; an extended warranty is available.
FEATURES
Note: Features may vary based on model or region.
Supports LTE TDD Bands 42/43/48 − Customization can be requested; sales@www.xtream-me.com
Complies with 3GPP Release 10 Cat6/7 standards
1000 Mbps Ethernet interface
Built-in bipolar directional LTE antenna
GUI-based local and remote Web management
TR-069 network management protocol support
Cell lock, SIM lock, and pin lock
User-friendly LED status indicators
Pole or wall mounted
Wi-Fi assisted alignment
Specifications
| Item | ATOM OD CAT6-LX CPE |
| LTE Mode | TDD |
| Channel Bandwidth | 5/10/15/20 MHz |
| MAX Output Power | 23 ± 2 dBm per Tx antenna |
| Frequency Bands | 42/43/48 |
| Peak Rate | DL 220 Mbps, UL 30 Mbps (2:7) |
| Antenna Type | Internal directional, 2T2R |
| Network Mode | NAT or Bridge |
| SIM | PIN management, SIM lock |
| Network Mgmt | TR-069, SNMP* |
| Dimensions (HxWxD) | 9.5 x 6.1 x 2.0 inches 2| 41 x 154 x 50 millimeters |
| Weight | 2 lbs/900 g |
