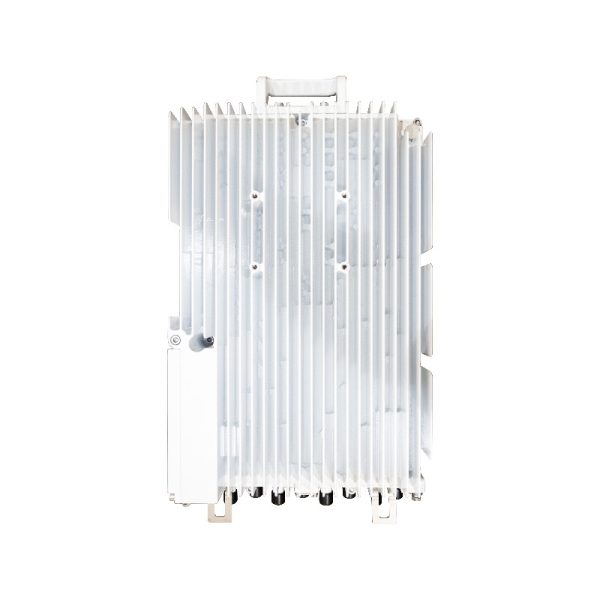

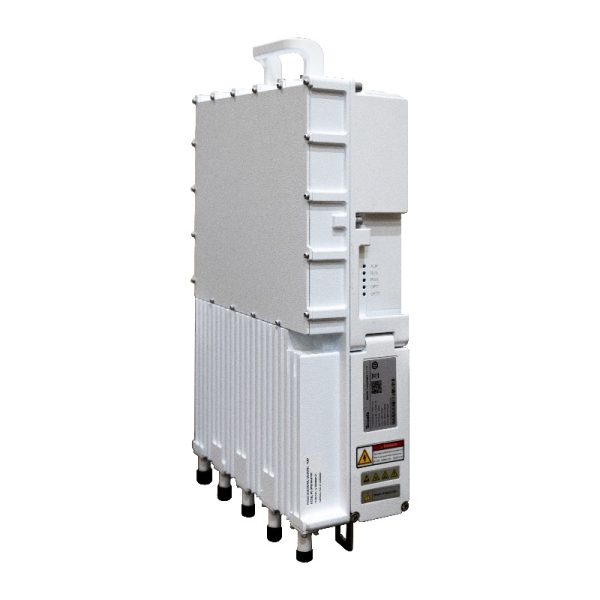

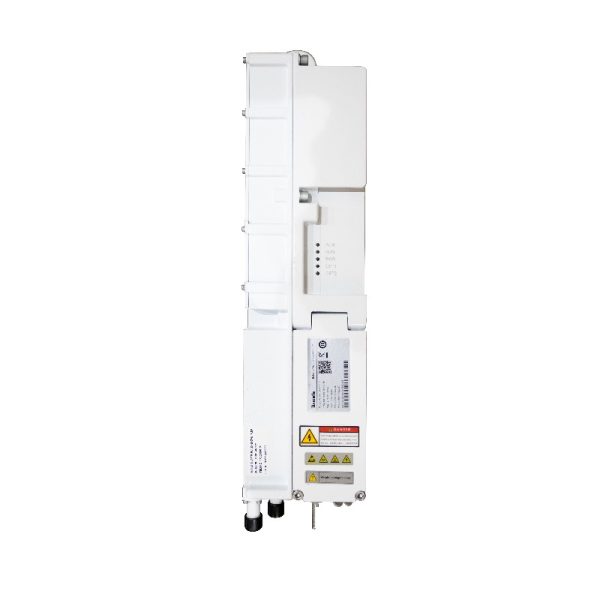

Baicells – NOVA846

Category:

The Baicells Nova846 is an advanced two-carrier outdoor eNodeB (eNB) that is compliant with 3GPP LTE TDD technology. This 8x5W eNB is capable of operating in Carrier Aggregation (CA) mode or Dual Carrier (DC)/split mode.

The Baicells Nova846 is an advanced two-carrier outdoor eNodeB (eNB) that is compliant with 3GPP LTE TDD technology. This 8x5W eNB is capable of operating in Carrier Aggregation (CA) mode or Dual Carrier (DC)/split mode.

In CA mode, contiguous or non-contiguous channels are aggregated to provide up to 40 MHz bandwidth. This essentially doubles the downlink capacity when the CA mode is used with all Cat6/7 user equipment.

In DC mode, each carrier is treated as an independent cell, supporting 128+128 users, and each supporting 20 MHz bandwidth. Using a Nova846 in DC mode simplifies and streamlines the deployment of split sectors.

Additionally, HaloB (an embedded MME option) is a standard feature in the base software. The Baicells patented HaloB solution migrates the necessary core network functions to the eNB.

The product comes with a standard one-year warranty; extended warranty is available.

Specifications

Item NOVA846
LTE Mode TDD
Frequency Bands Band 41, 48
Channel Bandwidth 5/10/15/20 MHz
MAX Output Power 37 dBm / channel x 8 channel
MIMO DL: 4×4
Peak Rate CA: DL 320 Mbps, UL 28Mbps
User Capacity 128+128 concurrent users, 256+256 RRC users
Antenna External high-gain antenna
Synchronization GPS
Dimensions 18.7 x 10 x 4.8 inches | 475 x 254 x 123 millimeters
Weight 17.6 lbs /8 kgs
Backhaul
