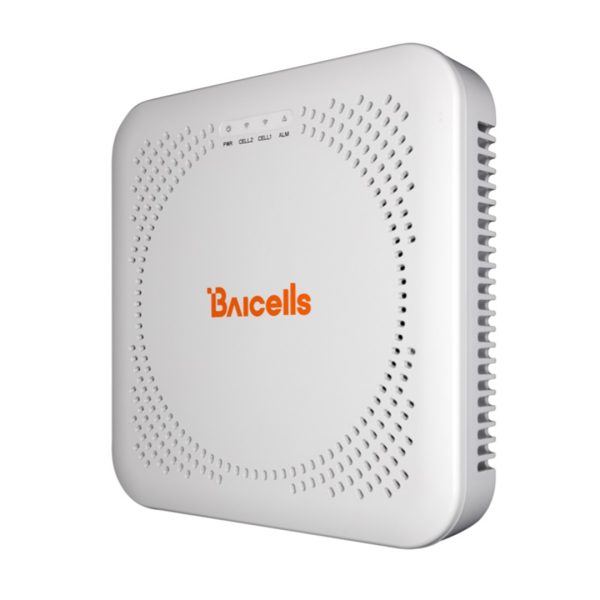

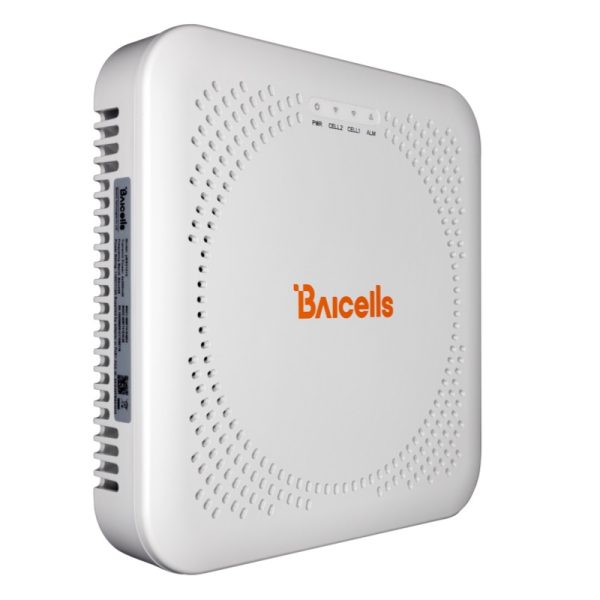

Baicells – NEUTRINO430

Category:

The Neutrino 430 is a dual-carrier picocell, offering superior indoor connectivity by providing 4x250mW of output power and using 2×2 MIMO downlink on each carrier. Quickly deploy this base station in a commercial building to instantly improve capacity and throughput while eliminating existing deadzones.

Specifications

Item NEUTRINO430
LTE Mode TDD
Frequency Bands 48, with customization available
Channel Bandwidth 5/10/15/20 MHz per carrier
MAX Output Power 24 dBm per antenna
MIMO DL: 2×2 on each carrier
Peak Rate DL 220 Mbps (DC) | UL 56 Mbps (DC)
User Capacity 64 concurrent users per carrier, 128 per eNB
Antenna Built-in antenna
Synchronization GPS, 1588v2
Dimensions 8.7 x 8.7 x 1.9 inches 220 x 220 x 47.5 millimeters
Weight 4.4 lbs / 2 kg
Backhaul
