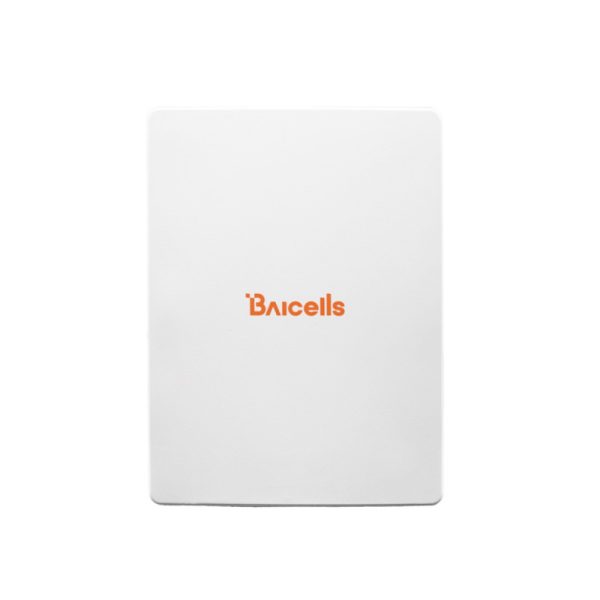

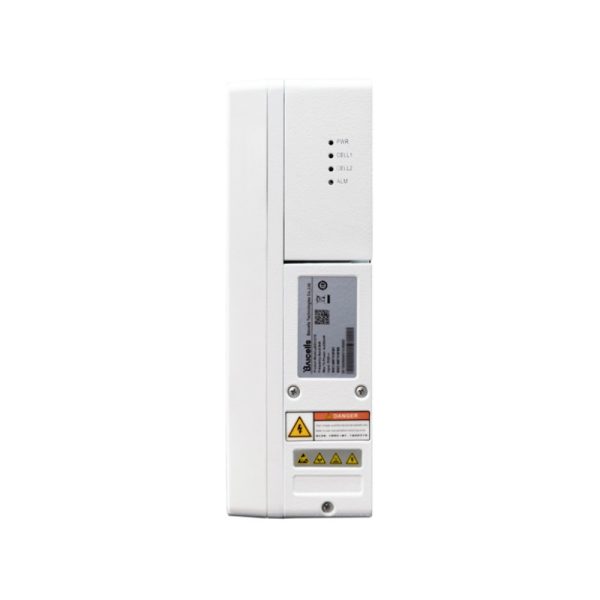

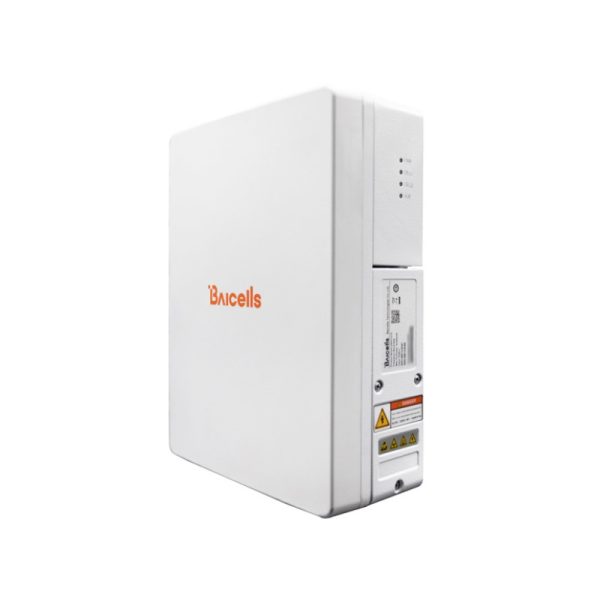

Baicells – NOVA430i

Category:

The Baicells Nova430e/430i is an advanced two-carrier outdoor eNodeB (eNB) compliant with 3GPP LTE TDD technology. This 4x250mW eNB can operate in Carrier Aggregation (CA) mode or Dual Carrier (DC)/split mode.

The Baicells Nova430e is an advanced two-carrier outdoor eNodeB (eNB) compliant with 3GPP LTE TDD technology. This 4x250mW eNB can operate in Carrier Aggregation (CA) mode or Dual Carrier (DC)/split mode.

The Nova430 is available in two variants: The Nova430e, which has one 4-port or two 2-port external antennas, and the Nova430i, which has four integrated high-gain LTE antennas.

In CA mode, contiguous or non-contiguous channels are aggregated to provide up to 40 MHz bandwidth. This doubles the downlink capacity when CA mode is used with all Cat6/7 or higher user equipment.

In DC mode, each carrier is treated as an independent cell, supporting 96+96 users, with each supporting 5, 10, 15, or 20 MHz bandwidth. Using a Nova430e/430i in DC mode simplifies and streamlines the deployment of split sectors.

In addition to CA and DC mode options, HaloB (an embedded MME option) is available on the Nova430e/430i as part of the base software. The Baicells patented HaloB solution migrates the necessary core network functions to the eNB.

This product comes with a standard product warranty; an extended warranty is available.

Specifications

Item NOVA430i
LTE Mode TDD
Frequency Bands Band 48 and partial bands 42, 43
Channel Bandwidth 5/10/15/20 MHz per carrier
MAX Output Power 24 dBm/channel
MIMO DL: 2×2 on each carrier, 2 carriers
Peak Rate DC: 220Mbps DL, 56Mbps UL / CA: 220Mbps DL, 28Mbps UL
User Capacity 96 in SC and CA, 96+96 in DC mode
Antenna 430: One 4-port or two 2-port external antennas | 430i: 13.5 dBi built-in 4-port antenna
Synchronization GPS
Dimensions 12.2 x 8.9 x 4.1 inches | 309 x 227 x 104 millimeters
Weight 10.7 lbs./4.85 kgs
Backhaul N/A
