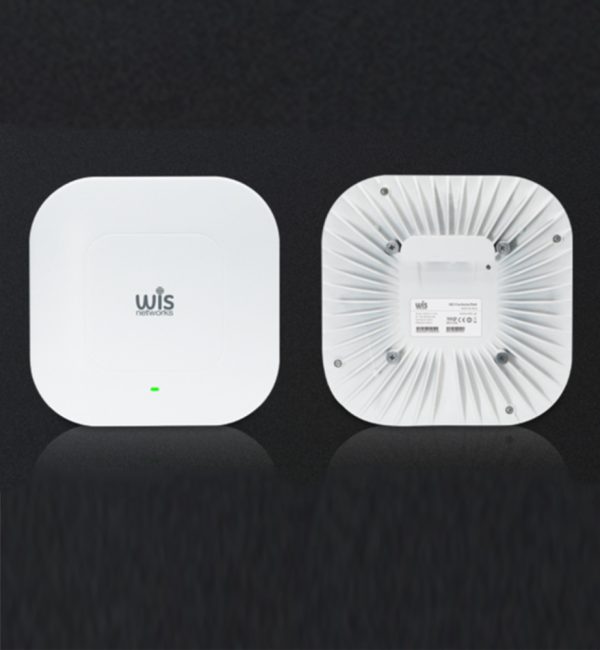

WIS Network | 5.4Gbps Wireless AP
2.4Ghz, 5GHz, WIS Network5400Mbps Wi-Fi 6 Wireless Indoor Access Point
The WCAP-AX-Pro Access Point is one of the wireless products fully developed by WIS Networks. The device supports 802.3bt PoE In power supply.
With concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology, providing 574Mbps at 2.4G, and 4804Mbps at 5G.
Integrated Fat/Fit AP + AC Architecture
WisCloud Controller is refined designed to suit all Wisnetworks enterprise class AP equipments.
A single controller can centrally supervise and manage the WiFi networks and multiple,
distributed APs could be taken care and work in a more effective way.
-
Description
Hardware parameters
| Physical Characteristics | |
| Processor | Qualcomm |
| Flash / Memory | 512MB DDR, 32MB Flash |
| LAN Port | 1*2.5 Gigabit |
| Button | Reset |
| Power | 802.3af/at/bt |
| Max Power Consumption | 22W |
| Working Temperature | -10C 〜60C |
| Working Humidity | 0%〜95% non-condensing |
| Mounting | Ceiling Mount/Wall Mount |
| Wireless Characteristics | |
| Wi-Fi Standard | 802.11 ax |
| Frequency | 2.4GHz&5GHz MU-MIMO |
| Speed | 5378Mbps |
| Max Tx Power | 2.4GHz (27dBm); 5GHz (30dBm) |
| Antenna | 3dBi Dual Omni |
| Multi-SSID | up to 8 SSID Per Radio |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WRA/WPA2, TKP/AES) |
| Concurrent Clients | 150+ |
| Coverage Range | 150m |
| Advanced Characteristics | |
| Mode | FatAP/Fit AP |
| VLAN | 802.1q |
| Guest Policy | Web Portal/Password |
| MAC Filter | Blacklist |
| User QoS | Speed Limit by User Group |
| Wireless Uplink | Supported |
