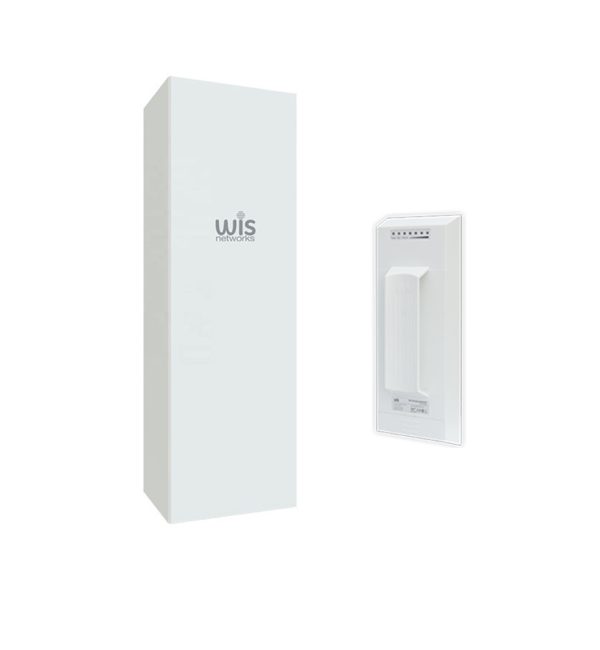

WIS Network | WIS-Q800P
Product Overview
WIS-Q800P is a 867Mbps 2*2 MIMO outdoor wireless CPE for point-to-point and point-to-multi-point solutions.
It is the most cost-effective and ultimate solution for WISP CPE,which provides incredible long range much better than any other vendors solution.
Incredible Long Range
● Up to 26dBm Tx Power
● 16dBi directional antenna
● Wireless Speed up to 867Mbps
● Narrower Beamwidth for noise immunity
-
Description
Hardware parameters
| Product code | WIS-Q800P |
| Architecture | MIPSBE |
| CPU | QCA9563+QCA9886+QCA8334 |
| Size of RAM | 64MB |
| Flash | 16MB |
| Radio | 802.11a/n/ac radio
Speed up to 867 Mbps Frequency Range:5.1-5.8GHz Tx Power up to 26dBm Rx Sensitivity 300M:-71dBm@10% PER 54M:-75dBm@10% PER 1M:-95dBm@10% PER |
| Antenna | 16dBi dual-polarized directional antenna
Beamwidth(HPBW): Horizontal: 60°, Vertical: 30° |
| Physical Parameters | Dimension:260x100x60mm
Weight:0.4kg Enclosure: Weatherproof Plastic ESD Protection：8kV Lightning Protection：4kV Working Temp：-40~65℃ Storage Temp：-40~85℃ Working Humidity：10%~95% non-condensing |
| Interfaces | 1x 10/100/1000 Base-T Ethernet (RJ45 with Passive PoE)
Reset |
| Power | 24VDC, 0.5A |
| LED | Power: On/Off
LAN:On/Off/Flashing RSSI Signal: 1,2,3 |
| Warranty | 1 Year |
| Certification | CE, RoHS |
| Power Consumption | <10W |
| Package content | WIS-Q800P
Quick Setup Guide Power Adapter with Passive PoE Mounting kits |
