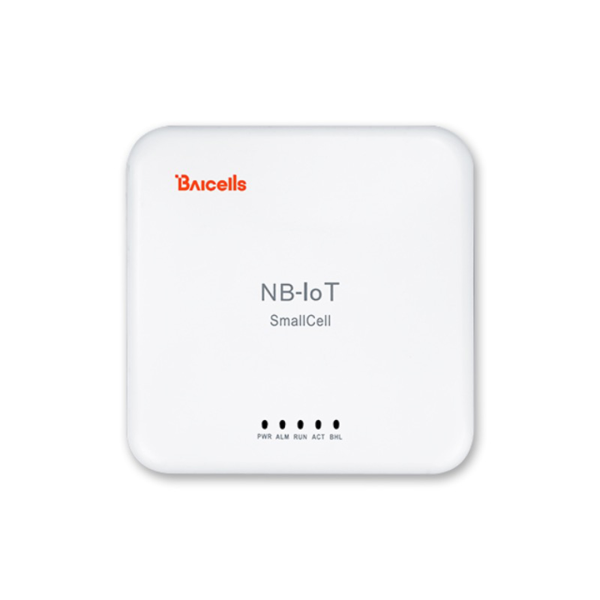

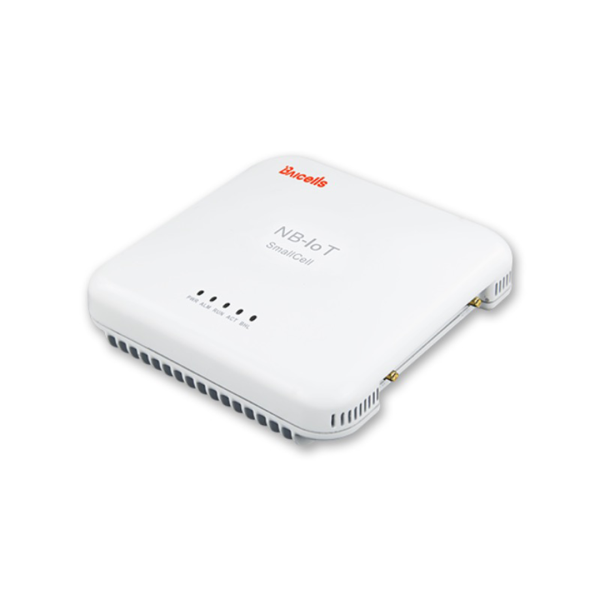

Baicells – NB-IoT
BaicellsThe NB-IoT or “NeutralCell” is an indoor LTE TDD/FDD eNodeB with 2*250 mW output power, which integrates base band and RF in one box, supporting multiple frequencies. It provides Neutral Host solution for multiple operators to help them share infrastructure. The NeutralCell can meet the requirements of communication systems of different operators regarding the frequency band and transmitted power to realize the flexible portfolio and flexible use by operator networks in the world.
-
Description
Specifications
| Item | NB-IoT |
| LTE Mode | FDD |
| Frequency Bands | 8 / 5 / 26 |
| Channel Bandwidth | 200 kHz |
| MAX Output Power | 24 dBm ±2 dB per module, for up to 3 modules |
| MIMO | 2*2 MIMO per module |
| Peak Rate | DL 150 kbps / UL 220 kbps |
| User Capacity | |
| Antenna | 3 dBi omni antenna |
| Synchronization | GPS |
| Dimensions | 7.87 x 7.87 x 2.3 inches / 200 x 200 x 58.5 millimeters |
| Weight | 3.3 lbs / 1.5 kg |
| Backhaul | 1 RJ-45 (GE) |
