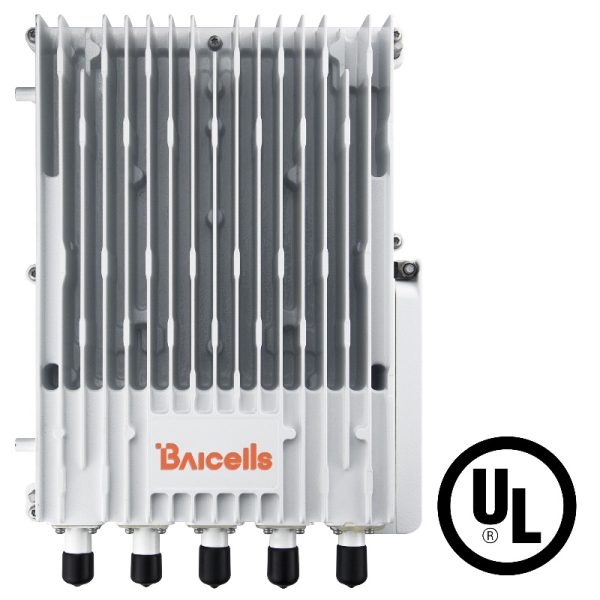

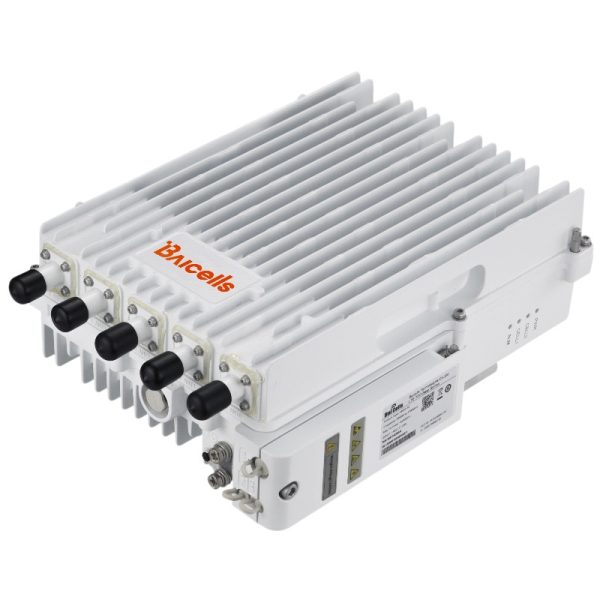

Baicells – NOVA436Q
BaicellsBaicells Nova 436Q is the next generation of LTE base stations. This advanced radio allows for carrier aggregation, even across discontiguous channels for maximum reach and capacity. Each carrier allows for 20 MHz of independent channel width setting this radio apart from the competition and allowing for superior NLOS connectivity. Like all Baicells eNBs, the 436Q is lightweight, low-power, and is designed to be plug and play.
-
Description
Specifications
| Item | NOVA436Q |
| LTE Mode | TDD |
| Frequency Bands | 48 and partial bands 42, 43 |
| Channel Bandwidth | 5/10/15/20 MHz per carrier |
| MAX Output Power | 30 dBm/Antenna |
| MIMO | DL: 2 x 2 on each carrier |
| Peak Rate | DL: 220 Mbps, UL: 28 Mbps |
| User Capacity | 32 concurrent users / 32+32 in DC mode / Future software release: 64 and 96 |
| Antenna | eNB has N-Type connectors and supports external high-gain antenna(s), either (2) 2-port antennas or (1) 4-port antenna |
| Synchronization | GPS, 1588 V2 |
| Dimensions | 12.2 x 9.4 x 4.1 inches / 310mm(H) x 239 mm(W) x 105 mm(D) |
| Weight | 12.1 lbs / 5.5 kg |
| Backhaul | 1 Optical (SFP) and 1 RJ-45 Ethernet interface (1 GE) |
