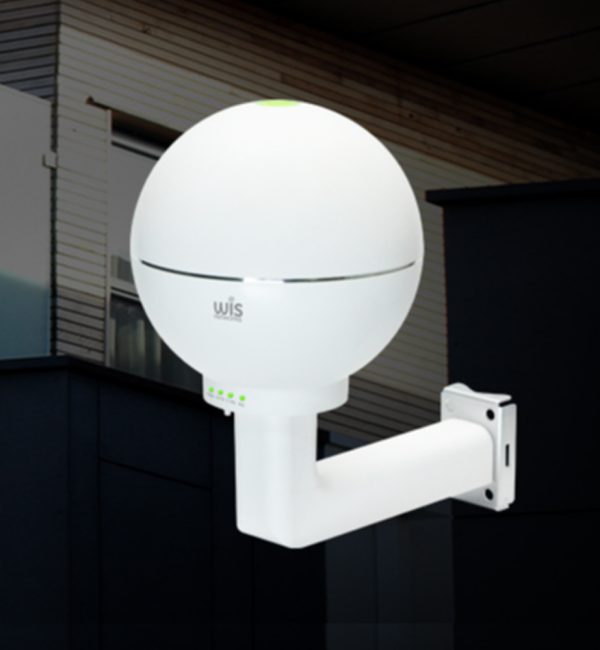

WIS Network | WOAP-AC
The WisCloud Access Point is the innovative series of products with remarkable performance in their features.
All configuration and management is centrally and effectively operated by the same set of WisCloud Controller.
It would be much easier to monitor the massive APs and more efficient to maintain the enterprise networks
-
Description
Hardware parameters
| Details | |
| Product code | WOAP-AC |
| Architecture | MIPSBE |
| CPU | QCA9563 |
| CPU nominal frequency | 775MHz |
| Size of RAM | 128MB |
| Storage size | 16MB |
| Storage type | Flash |
| Ethernet port | 1 x Gigabit RJ45 |
| Tested ambient temperature | -40°C to 50°C |
| Mechanical | |
| Wireless 2.4 GHz Max data rate | 300 Mbps |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.b/g/n |
| Antenna gain dBi for 2.4 GHz | 5dBi |
| Wireless 2.4 GHz chip model | QCA9563 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 2.4 GHz Max Tx Power | 24dBm |
| Wireless 5GHz Max data rate | 867 Mbps |
| Wireless 5GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.a/n/ac |
| Antenna gain dBi for 5 GHz | 5dBi |
| Wireless 5GHz chip model | QCA9886 |
| Wireless 5 GHz generation | WI-Fi 5 |
| Wireless 5 GHz Max Tx Power | 26dBm |
