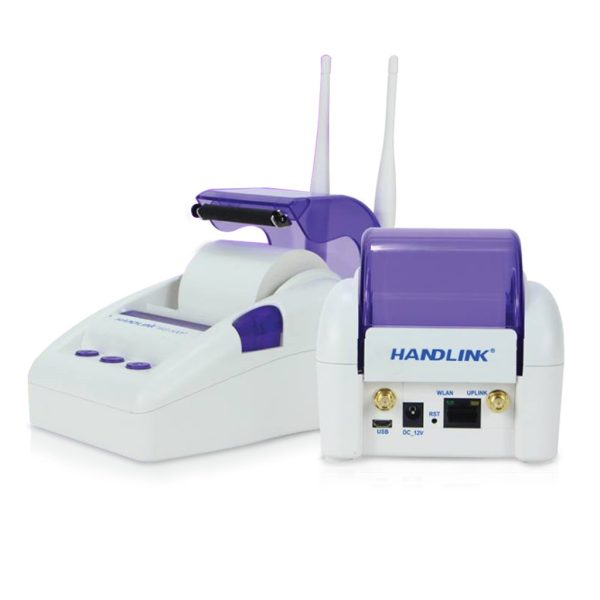

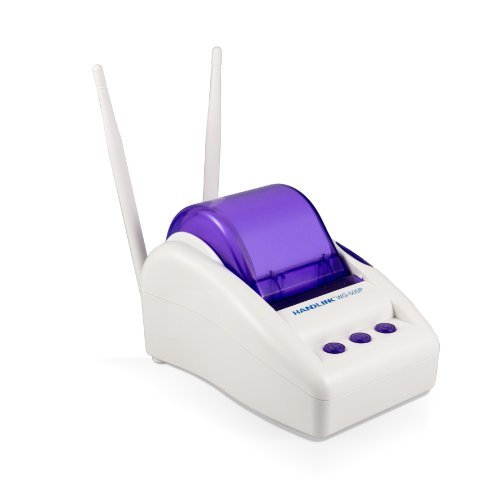

Handlink WG-500P
Handlink WG-500P
In stock

Handlink WG-500P

Category:

With BYOD trend today, people need Wi-Fi access for their works, searches and their social life. Therefore, the WG-500P offers a robust and secure hotspot solution for the mini size venues to provide Internet service such as café/ pharmacy/ small store or shop.

The WG-500P support time-base and volume-base billing selection, so venues can set up their own billing methods by either letting the customers pay for the volume of downloads or usage time without worrying about insufficient bandwidth because WG-500P has already done a good job on allocating it!

The WG-500P becomes various small venues’ favorite due to its productive Wi-Fi solution in different conditions. Combining a gateway and a printer into one device, WG-500P can be applied not only in fixed venues , but also in mobile conditions such as buses and yachts.

We also design a login page for venues to key-in guests/ visitors identity to fit the laws in some conutries. According to the law, it requires venue owners to provide the guest’s Internet usage records for tracking. Thus the WG-500P provides a Real-time session information and the remote site administrator could monitor the real time usage status via Session information page.

  • Description
Network Specification
  • IEEE802.3 10BaseT ethernet
  • IEEE802.3u 100BaseTX fast ethernet
  • IEEE802.11n/b/g
Wireless
  • IEEE802.11n
  • 8 ESSID
Frequency Band
  • 2.4 GHz frequency band
Wireless Operation Range
  • Up to 100 meters (outdoor)
Concurrent Devices
  • To extend wireless coverage, support USB to Ethernet for up to 50 devices
Wireless Data Rate
  • Up to 300Mbps with auto fall back with 802.11b/g
Networking
  • IP Plug and Play (iPnP)
  • HTTP Proxy support
  • SMTP server redirection
  • DHCP server (RFC 2131) / DHCP relay (RFC 1542)
  • Static IP / DHCP / PPPoE / PPTP WAN client
  • NAT (RFC 1631); IP routing; NTP support
  • Local account: 256
  • Max session number up to 16384
Authentication
  • Built in authentication
  • Radius authentication/ Accounting
  • Web-based authentication/ Account manager/ Authorization user agreement
Encryption
  • WEP 64/128bit, WPA-PSK TKIP, WPA2-PSK (AES)
  • WPA/WPA2 Mix mode
Billing
  • Accounting without PC operating
  • Credit card support
  • 10 Customizable billing profile
  • Prepaid billing mechanism
  • Time-base billing (by minute, hour, day and week)
  • Account log max. 1000
Security and Firewall
  • Layer 2 Isolation
  • SSL Login Page/ SSL Administration
  • VPN pass through (IPSec/PPTP/L2TP)
  • Customize SSL certificate
  • Pass through destination IP/URL
  • Pass through source IP/MAC
  • Restricted destination filtering IP/URL
  • VPN PPTP client
Management
  • Remote web-based configuration and management
  • Authorized remote management (Access Control List)
  • Firmware upgrade (RFC 1350) via HTTP/TFTP
  • Scheduled firmware upgrade
  • Dynamic DNS
  • Real-time current user list / DHCP clients list / Session list / Account list
  • Syslog
  • Bandwidth / Session control per user
  • Session trace
  • Secure remote
  • SNMP V1/V2c (Read Only and OID 500)
  • Ping command
  • SSL certificate upload
  • Internet access limit during the peak time*
Marketing Cooperation
  • Advertisement URL link
  • Walled garden
  • Customize login page, Logo, Information windows, Account print out, Credit card, User agreement
  • Portal page
  • QR code scan for login
Power Requirement
  • External power adaptor
  • Input: 100-240 VAC, 50/60 Hz
  • Output: 12V, 1.5Amp
Dimension
  • (L): 109 mm / (W): 155 mm / (H): 90 mm
  • Weight: about 340g (net)
Printer Tray
  • Push button: Push to open printer cover
  • Tear bar: Cuts receipt paper
  • Button A: Flashing when printer cover is opened
  • Paper roll housing: Put paper roll here
Paper Roll Specification
  • (W): 58(+1/-1) mm /(L): 50meters (max) / Thickness: 65um
  • Outside diameter: 63(+2/-2) mm
  • Inside diameter: 12(+0.5/-0.5) mm
  • Weight: 120 grams.
Environmental Conditions
  • Operating temperature: 0 °C to 50°C
  • Storage temperature: -10 °C to 60°C
  • Humidity: 10% ~ 90% non-condensing
  • Humidity: 10% ~ 80% condensing
Certification
  • FCC/ CE/ C-Tick/ VCCI/ GOST-R/ Telec/ NCC/ NTC/ FAC/ BSMI*/ Anatel*/ COFETEL*
