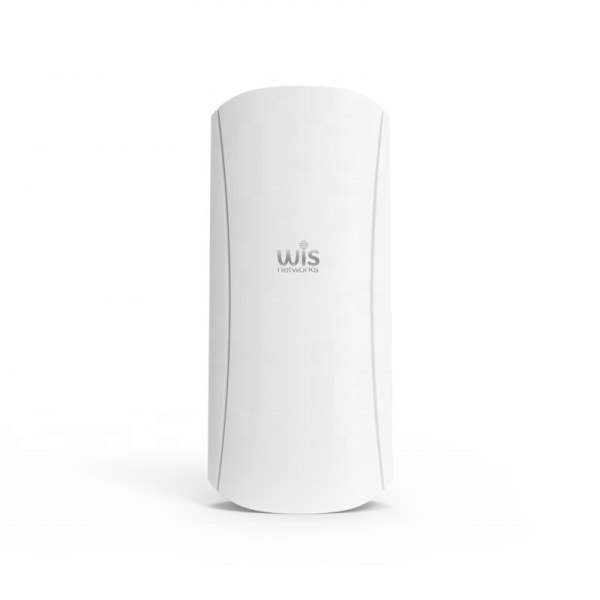

WIS Network | WIS-Q450
Extremely Amazing Performance
WIS-Q450 is a 433Mbps 1*1 MIMO outdoor wireless CPE for point-to-point and
point-to-multi-point solutions. It is the most cost-effective and ultimate solution for WISP
CPE,which provides incredible long range much better than any other vendors solution.
Incredible Long Range
● Up to 23dBm Tx Power
● 14dBi directional antenna
● Wireless Speed up to 433Mbps
● Narrower Beamwidth for noise immunity
-
Description
Hardware parameters
| Radio | 802.11a/n/ac radio
Wireless Speed up to 433Mbps Frequency Range 5.150-5.250GHz 5.250-5.350GHz（Support DFS） 5.470-5.725GHz (Support DFS) 5.725-5.825GHz Tx Power up to 23dBm Rx Sensitivity 300M:-71dBm@10% PER 54M:-75dBm@10% PER |
| Antenna | 14dBi panel antenna
Beamwidth(HPBW) Horizontal:45°，Vertical:45° Open space 1-3KM |
| Physical Parameters | Dimension:177mm*80mm*65mm
Weight:0.3kg Enclosure: Weatherproof Plastic ESD Protection：15kV Lightning Protection：2kV Working Temp：-40~65℃ Storage Temp：-40~85℃ Working Humidity：10%~95% non-condensing |
| Security | Integrated Firewall
WPA/WPA2;WPA-PSK/WPA2-PSK(AES/TKIP) Encryption;64/128-bit WEP |
| Interfaces | 14dBi panel antenna
Beamwidth(HPBW) Horizontal:45°，Vertical:45° 1x 10/100Base-T Ethernet |
| LED | Power：On/Off
LAN:On/Off/Flashing WLAN:On/Off/Flashing RSSI Signal:1,2,3 |
| Power | 24VDC, 0.5A
Power Consuption: 6W |
| Certifification | CE, RoHS |
| Package content | WIS-Q450
Quick Setup Guide Power Adapter with Passive PoE Mounting kits |
